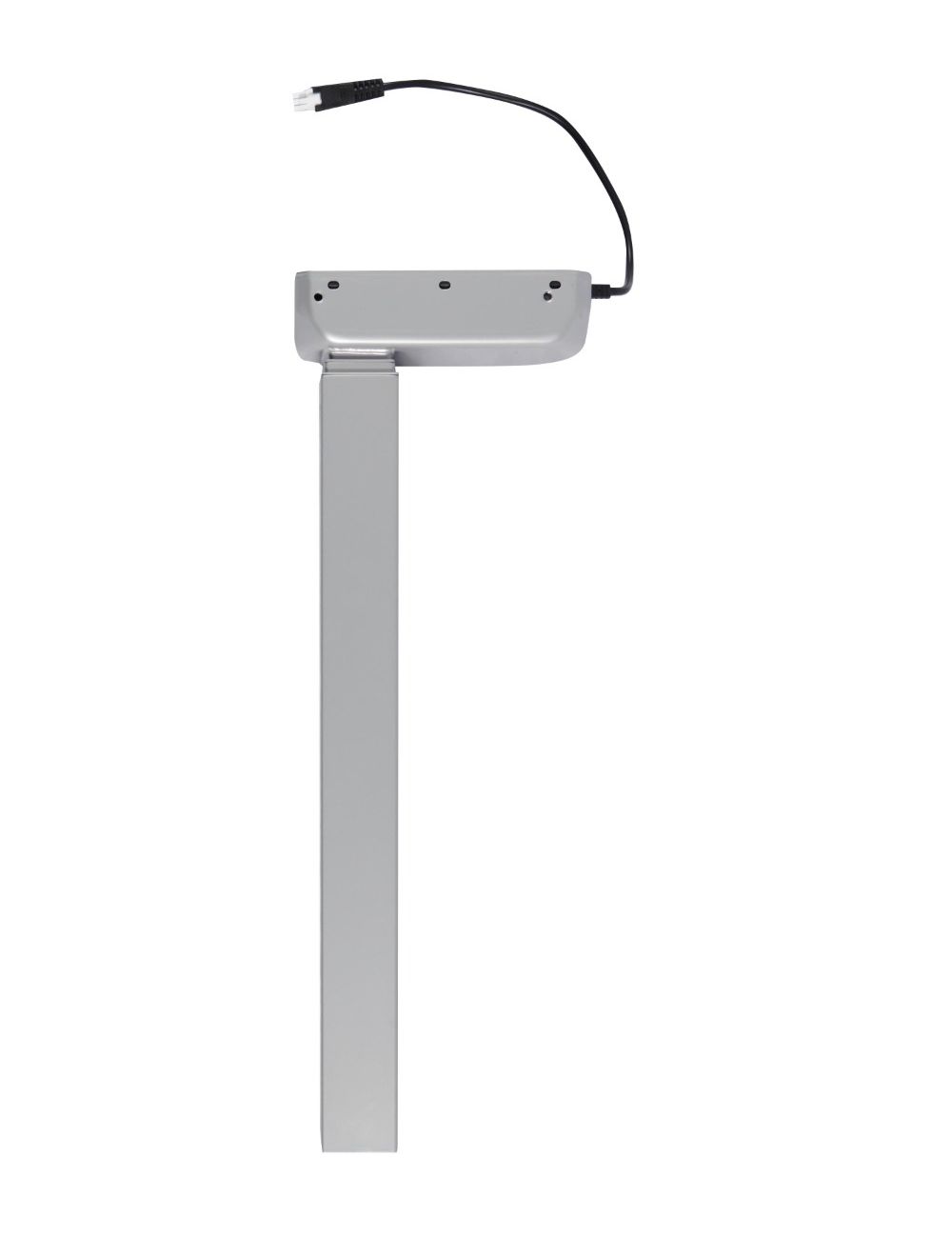

Dual Stage Actuator Kit

Dual Stage Actuator Kit

• Rectangle lifting column with 3mm optimized motor housing design for extra strength and stability
• No hole tube design
• Load capacity: 800N of each workstation leg
• Max speed: 40mm/s
• Low noise level <50dB
• Standard installation length: 560mm
• Standard stroke length: 650mm
• Column dimensions: outer tube: 80x50mm; middle tube: 75x45mm; inner tube: 70x40mm
• Hall sensor enabling parallel drive
• Available in 3 Finishes

Kit includes: 2 x Actuators; 1 x Up/Down Control; 1 x Control Box;  1 x UK 3 Pin plug lead & 1 x Extension Cable

Please note: Non-Standard paint finishes are available for large volume orders - contact your Account Manager for more information
